IEC61439 & IEC61641 - TYPE TESTED PCC CONTROL PANELS

Type Tested Assemblies (TTA).

100% Modular design.

Busbar tested at 50kA and 65kA short circuit ratings.

All 12 Type tests as per IEC-61439 – 1 & 2 standards.

Compartmentalized - up to Form 4 IP 54 with a polyurethane foam gasket.

Double front execution can also be provided.

Horizontal & vertical separation plates are provided between all feeder compartments.

Colours: RAL-7035 & RAL-7032 (structure finish) for structure, covers & doors.

RAL-2000 (smooth finish) for Mtg. Plate, RAL-9000 (smooth finish) for Plinth and lifting channel.

Sheet thickness 2.0mm GPSP for Structure, 2.0mm CRCA for mtg plate & mtg rail, 1.6mm CRCA for Covers & Doors, 1.2mm CRCA for Separation Plates.

ARC Flaps for the IEC-61641 options also provided.

Wide Variety of Standard PCC & MCC ranges.

Dual & Triple Incomer integrations with bus couplers.

RITTAL with ABB Switchgear.

C&S Cx TTA Solutions.

BlokSeT Schneider Solutions.

MODUTEC IEC-61439 Enclosure Solutions with ABB switchgear.

Options with Aluminium and Copper busbars up to 4000A.

MCC CONTROL PANELS

Compartmental and Non-Compartmental Enclosures.

CPRI certified design control panels.

IEC-61439 – 1&2 Type tested enclosures.

Form 3B enclosures.

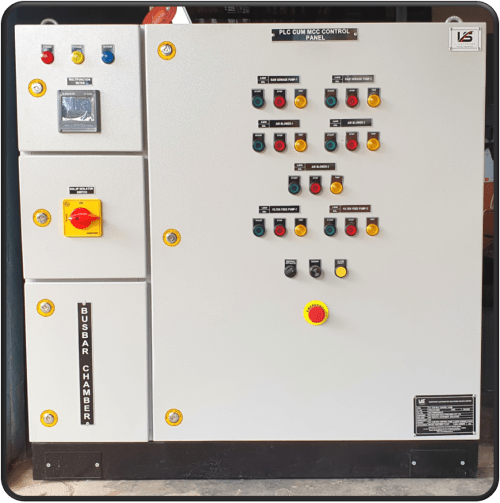

PLC cum MCC combined panels.

Panels designed for End user requirements and application needs.

Both welded and modular designs available.

Proper legible stickers and markings to ensure safety and operation.

VFD CONTROL PANELS

6-pulse and 12-pulse VFD panels.

0.37kW to 800KW VFD panels.

Selection made based on motor name plate criteria.

By-pass starters integrated to the panels to keep the system running.

Dedicated Ventilation roof systems for the enclosures with High power drives.

Input and Output choke as per client requirement.

PLC integration for Speed Control and status monitoring.

Cooling/Exhaust fan selection based on CFM calculations.

High quality accessories that make your product purchase reliable.

Proper legible stickers and markings to ensure safety and operation.

PCC CONTROL PANELS

Starts from 63A to 4000A.

Both Aluminium and Copper busbar solutions.

CPRI certified design control panels.

IEC61439 Type tested enclosures.

Enclosure thickness from 14/16 SWG CRCA.

Paint Powder Coating using 7 tank process.

Panels designed for End user requirements and application needs.

Shrouds and PVC sheets for highest safety protections.

FR & FRLS cables at 1.1kV grade for control and power wiring.

Busbar links for rating starting from 100A and above.

STARTER PANELS

For applications that require up to 15 motor starters.

Form 2B and Partial Compartmental designs.

Incomer with MCCB or Isolator options based on current rating.

Welded type enclosures with 7 tank powder coating.

Single Phase Preventer options.

Energy Meter and ELR options.

Floor mounted and Wall mounted options.

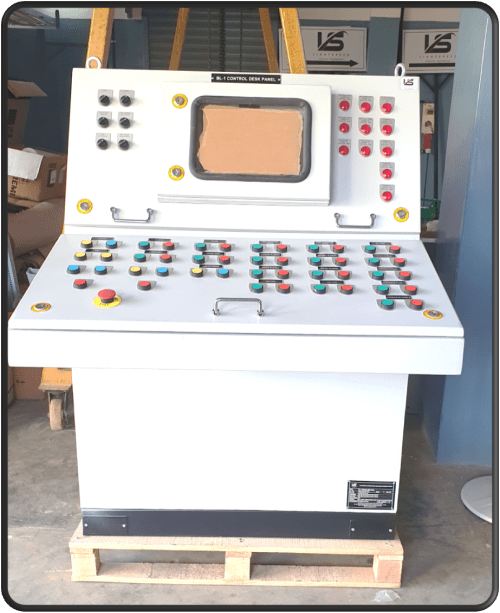

CONTROL DESK

Operator Control desk models with high quality materials.

HMI based or PC based glass see through designs.

Complete controls with terminals in desk type arrangement.

Extension sockets with surge protection options.

UPS can be included as an additional within the control desk.

Legible name plates for easy identification.

Indications on the sides to ensure any priority alarm signals.

Door for HMI considering additional safety.

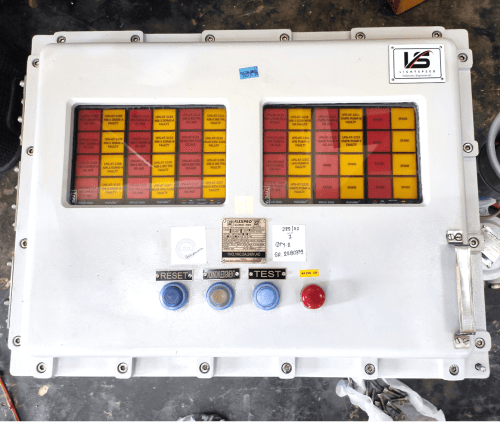

FLAME PROOF PANELS

Panel Protection IP65/66.

Available for Zone – 1 & Zone 2.

EX D, Explosion, Flame Proof, Weatherproof.

Gas Group IA, IIA, IIB & IIC.

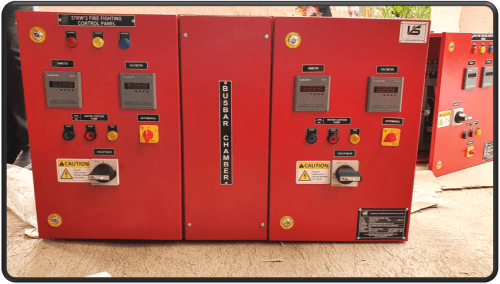

FIRE FIGHTING PANELS

Fire Fighting panels with RAL3000 colour.

Power & Starter type panels.

Compartmental & Non-Compartmental options.

Panel Protection IP54/55.

Pressure Interlocks as required for the system.

Jockey pump controls.

With PLC & Without PLC options available.

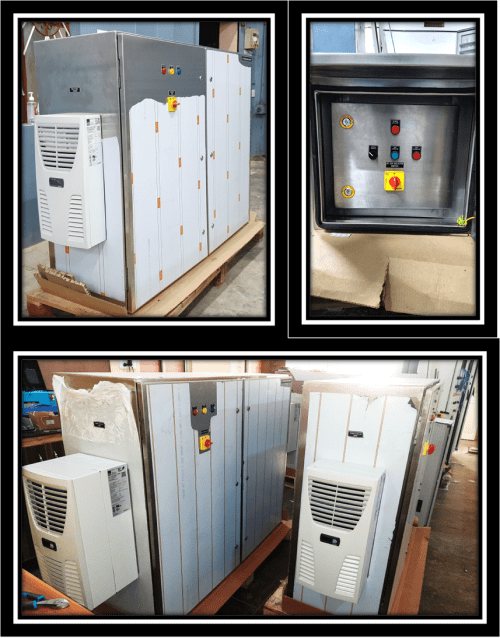

STAINLESS STEEL PANELS

Brands we deal are Hoffman (nVent), Rittal and Reputed (Manufactured).

SS304 & SS316 available with smooth brushed finish.

Industrial standards of manufacturing quality.

Zonex ATEX-Certified, Type 4X.

Type 3R/4X/12 or IP 55/66 Wall Mount.

UL 508A Listed; Type 3R, 4, 4X, 12 for Hoffman.

Up to 2000mm height available.

RELAY CONTROL PANELS

Omron, Schneider or any Reputed brand relays with panel.

Clear ferruled terminations help relay connection tracing very easy.

RTU CONTROL PANELS

Built with necessary communication network devices.

Panel Protection IP54/55/64/65.

MODBUS RTU, MODBUS TCP/IP network configurations.

Combined with PLC & RTU modules.

Custom built design and sizes.

Remote access for PLC & HMI devices via Remote Gateway modules.

RS232/RS485, Ethernet ports.

SCADA integration via Ring & Star topology.

WiFi & 4G GSM/GPRS connectivity.

LED MIMIC PANELS

Full size MIMIC with LED indications of Motor & Instrument status.

Form 2B and Partial Compartmental designs.

P&ID embossed Aluminium MIMIC screens.

Other standard Starter panel options.

PLC & Relay based solutions available.

RAL7035 & RAL7032 paint structured finish colours.

Switchgear brands with Siemens, Schneider, ABB & Reputed.

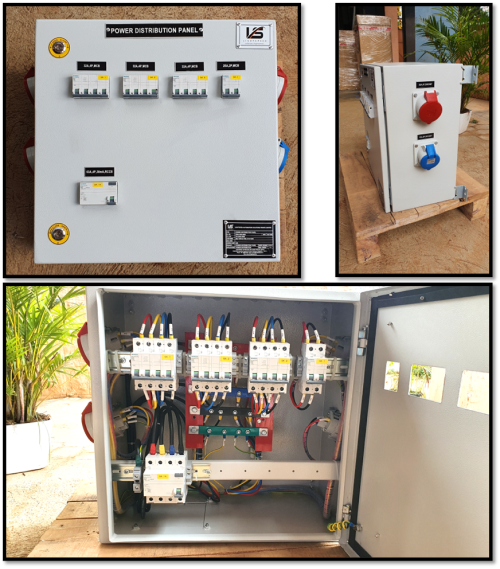

POWER DISTRIBUTION & SOCKET PANELS

3 pin & 5 pin industrial sockets.

IP55/64/65/66 Protection rating.

With stand options available.

Tested busbar supports and FRP supports.

Copper tin coated busbar strips.

Polycarbonate, CRCA & ABS plastic material available.

Readymade socket panels available.

RYB indication options.

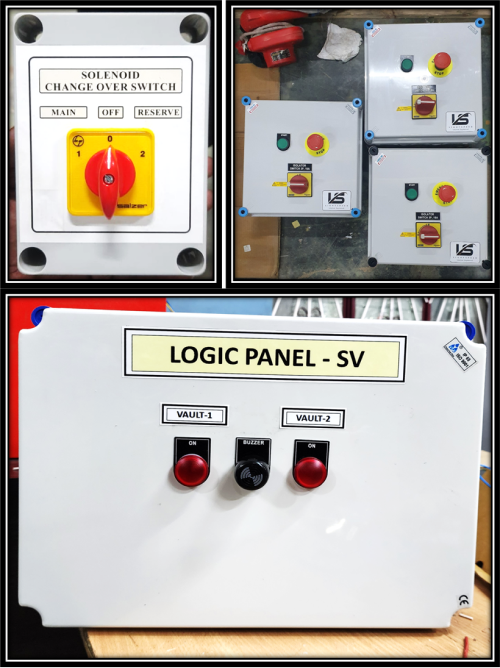

JUNCTION & ISOLATOR BOXES

Junction boxes of different sizes from 100x100mm to 600x500x300mm available.

IP55/64/65/66 Protection rating.

CE approved.

ISO 9001 certified.

Hinged door type options available.

Custom labelling can be done at M/s LIGHTSPEED.

Isolator boxes manufactured as per site requirement for motor/pump isolation with Schneider, Siemens and Reputed brands.
